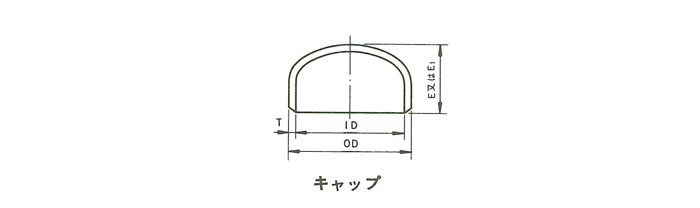

ステンレス鋼製キャップ
| 径の呼び | 外形 OD |
Sch 5S | Sch 10S | Sch 20S | Sch 40 | Sch 80 | 背から 端面まで の距離 |
限界の厚さ | 概略重量(kg) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | 内径 ID |
厚さ T |
内径 ID |
厚さ T |
内径 ID |
厚さ T |
内径 ID |
厚さ T |
内径 ID |
厚さ T |
E | E1 | Sch 5S |
Sch 10S |
Sch 20S |
Sch 40 |
Sch 80 |
||
| 15 | 1/2 | 21.7 | 18.4 | 1.65 | 17.5 | 2.1 | 16.7 | 2.5 | 16.1 | 2.8 | 14.3 | 3.7 | 25.4 | - | - | 0.023 | 0.029 | 0.034 | 0.039 | 0.051 |
| 20 | 3/4 | 27.2 | 23.9 | 1.65 | 23.0 | 2.1 | 22.2 | 2.5 | 21.4 | 2.9 | 19.4 | 3.9 | 25.4 | - | - | 0.028 | 0.036 | 0.043 | 0.050 | 0.067 |
| 25 | 1 | 34.0 | 30.7 | 1.65 | 28.4 | 2.8 | 28.0 | 3.0 | 27.2 | 3.4 | 25.0 | 4.5 | 38.1 | - | - | 0.053 | 0.090 | 0.096 | 0.109 | 0.144 |
| 32 | 1 1/4 | 42.7 | 39.4 | 1.65 | 37.1 | 2.8 | 36.7 | 3.0 | 35.5 | 3.6 | 32.9 | 4.9 | 38.1 | - | - | 0.066 | 0.113 | 0.121 | 0.145 | 0.197 |
| 40 | 1 1/2 | 48.6 | 45.3 | 1.65 | 43.0 | 2.8 | 42.6 | 3.0 | 41.2 | 3.7 | 38.4 | 5.1 | 38.1 | - | - | 0.076 | 0.130 | 0.139 | 0.171 | 0.236 |
| 50 | 2 | 60.5 | 57.2 | 1.65 | 54.9 | 2.8 | 53.5 | 3.5 | 52.7 | 3.9 | 49.5 | 5.5 | 38.1 | 44.5 | 5.5 | 0.099 | 0.168 | 0.210 | 0.234 | 0.330 |
| 65 | 2 1/2 | 76.3 | 72.1 | 2.1 | 70.3 | 3.0 | 69.3 | 3.5 | 65.9 | 5.2 | 62.3 | 7.0 | 38.1 | 50.8 | 7.0 | 0.169 | 0.242 | 0.282 | 0.420 | 0.565 |
| 80 | 3 | 89.1 | 84.9 | 2.1 | 83.1 | 3.0 | 81.1 | 4.0 | 78.1 | 5.5 | 73.9 | 7.6 | 50.8 | 63.5 | 7.6 | 0.253 | 0.362 | 0.483 | 0.664 | 0.917 |
| 90 | 3 1/2 | 101.6 | 97.4 | 2.1 | 95.6 | 3.0 | 93.6 | 4.0 | 90.2 | 5.7 | 85.4 | 8.1 | 63.5 | 76.2 | 8.1 | 0.353 | 0.504 | 0.672 | 0.958 | 1.36 |
| 100 | 4 | 114.3 | 110.1 | 2.1 | 108.3 | 3.0 | 106.3 | 4.0 | 102.3 | 6.0 | 97.1 | 8.6 | 63.5 | 76.2 | 8.6 | 0.409 | 0.585 | 0.780 | 1.17 | 1.68 |
| 125 | 5 | 139.8 | 134.2 | 2.8 | 133.0 | 3.4 | 129.8 | 5.0 | 126.6 | 6.6 | 120.8 | 9.5 | 76.2 | 88.9 | 9.5 | 0.805 | 0.978 | 1.44 | 1.90 | 2.73 |
| 150 | 6 | 165.2 | 159.6 | 2.8 | 158.4 | 3.4 | 155.2 | 5.0 | 151.0 | 7.1 | 143.2 | 11.0 | 88.9 | 101.6 | 11.0 | 1.11 | 1.35 | 1.99 | 2.83 | 4.38 |
| 200 | 8 | 216.3 | 210.7 | 2.8 | 208.3 | 4.0 | 203.3 | 6.5 | 199.9 | 8.2 | 190.9 | 12.7 | 101.6 | 127.0 | 12.7 | 1.74 | 2.49 | 4.05 | 5.11 | 7.91 |
| 250 | 10 | 267.4 | 260.6 | 3.4 | 259.4 | 4.0 | 254.4 | 6.5 | 248.8 | 9.3 | 237.2 | 15.1 | 127.0 | 152.4 | 12.7 | 3.26 | 3.84 | 6.23 | 8.92 | 16.4 |
| 300 | 12 | 318.5 | 310.5 | 4.0 | 309.5 | 4.5 | 305.5 | 6.5 | 297.9 | 10.3 | 283.7 | 17.4 | 152.4 | 177.8 | 12.7 | 5.47 | 6.15 | 8.89 | 14.1 | 26.4 |
| 350 | 14 | 355.6 | 347.6 | 4.0 | 345.6 | 5.0 | 339.8 | 8.0 | 333.4 | 11.1 | 317.6 | 19.0 | 165.1 | 190.5 | 12.7 | 6.68 | 8.35 | 13.2 | 18.6 | 34.9 |
| 400 | 16 | 406.4 | 397.4 | 4.5 | 396.4 | 5.0 | 390.4 | 8.0 | 381.0 | 12.7 | 363.6 | 21.4 | 177.8 | 203.2 | 12.7 | 9.46 | 10.5 | 16.6 | 26.7 | 49.0 |
| 450 | 18 | 457.2 | 448.2 | 4.5 | 447.2 | 5.0 | 441.4 | 8.0 | 428.6 | 14.3 | 409.6 | 23.8 | 203.2 | 228.6 | 12.7 | 12.1 | 13.4 | 21.2 | 41.5 | 69.0 |
| 500 | 20 | 508.0 | 498.0 | 5.0 | 497.0 | 5.5 | 492.2 | 9.5 | 477.8 | 15.1 | 455.6 | 26.2 | 228.6 | 254.0 | 12.7 | 16.7 | 18.4 | 26.4 | 54.0 | 93.7 |
| 550 | 22 | 558.8 | 548.8 | 5.0 | 547.8 | 5.5 | 539.8 | 9.5 | 527.0 | 15.9 | 501.6 | 28.6 | 254.0 | 254.0 | 12.7 | 20.4 | 22.4 | 38.7 | 64.8 | 116.5 |
| 600 | 24 | 609.6 | 598.6 | 5.5 | 596.6 | 6.5 | 590.6 | 9.5 | 574.6 | 17.5 | 547.6 | 31.0 | 266.7 | 304.8 | 12.7 | 26.1 | 30.8 | 45.0 | 90.2 | 159.7 |
| 650 | 26 | 660.4 | 649.4 | 5.5 | 644.4 | 8.0 | 635.0 | 12.7 | 622.6 | 18.9 | 592.4 | 34.0 | 266.7 | - | - | 29.2 | 42.4 | 67.3 | 100 | 180 |
| 径の呼び | 外形 OD |
7.9(LG) | STD | XS | 背から 端面まで の距離 E |
概略重量(kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | 内径 ID |
厚さ T |
内径 ID |
厚さ T |
内径 ID |
厚さ T |
7.9 (LG) |
STD | XS | ||
| 700 | 28 | 711.2 | 695.4 | 7.9 | 692.2 | 9.5 | 685.8 | 12.7 | 203.2 | 46.6 | 56.0 | 74.8 |
| 750 | 30 | 762.0 | 746.2 | 7.9 | 743.0 | 9.5 | 736.6 | 12.7 | 215.9 | 51.5 | 61.9 | 82.8 |
| 800 | 32 | 812.8 | 797.0 | 7.9 | 793.8 | 9.5 | 787.4 | 12.7 | 228.6 | 56.7 | 68.2 | 91.2 |
| 850 | 34 | 863.6 | 847.8 | 7.9 | 844.6 | 9.5 | 838.2 | 12.7 | 241.3 | 62.2 | 74.8 | 100 |
| 900 | 36 | 914.4 | 898.6 | 7.9 | 895.4 | 9.5 | 889.0 | 12.7 | 254.0 | 67.0 | 81.7 | 109 |
| 950 | 38 | 965.2 | 949.4 | 7.9 | 946.2 | 9.5 | 939.8 | 12.7 | 266.7 | 78.5 | 94.4 | 126 |
| 1000 | 40 | 1016.0 | 1000.2 | 7.9 | 997.0 | 9.5 | 990.6 | 12.7 | 279.4 | 84.9 | 102 | 137 |
| 1050 | 42 | 1066.8 | 1051.0 | 7.9 | 1047.8 | 9.5 | 1041.4 | 12.7 | 292.1 | 91.6 | 110 | 147 |
| 1100 | 44 | 1117.6 | 1101.8 | 7.9 | 1098.6 | 9.5 | 1092.2 | 12.7 | 304.8 | 104 | 125 | 167 |
| 1150 | 46 | 1168.4 | 1152.6 | 7.9 | 1149.4 | 9.5 | 1143.0 | 12.7 | 317.5 | 111 | 134 | 179 |
| 1200 | 48 | 1219.2 | 1203.4 | 7.9 | 1200.2 | 9.5 | 1193.8 | 12.7 | 330.2 | 119 | 141 | 191 |
注)①キャップの背から端面までの距離は、基準厚さが限界厚さ以下の場合はEとし、限界厚さを越えるときE1と致します。
②キャップの形状は半だ円形とし、内面における長径と短径の比は1を超え2以下とします。
③LG(Light Gaugeの略)は、径の呼び14B(350A)以上のものの、7.9の呼び厚さを示す記号です。
④28B(700A)以上は当社の社内規格によります。
⑤48B(1200A)を超える径の呼び及び本表以外の厚さについても製作可能ですので別途ご相談下さい。
